Modelo:	Série HE	Nome do produto:	Instrumento de medição de imagem totalmente automático (tipo pórtico fixo) - HP442
Repetibilidade:	1,5um	Precisão:	1,6+L/200um
Resolução de escala linear:	0.5um (0,1um opcional)	Modo de medição:	Totalmente automático
Apoiar:	OEM, ODM, personalizar	Escenário de aplicação:	Laboratório/Indústria
Garantia:	12 meses	Peso (kg):	560
Precisão de repetibilidade (um):	1,5
Destacar:	HP Series CNC vision measuring machine , semiconductor component inspection machine , micron-level precision vision measurement

Descrição de produto

HP Series CNC Vision Measuring Machine – Micron-level Precision Inspection for Semiconductor Components

Product Overview

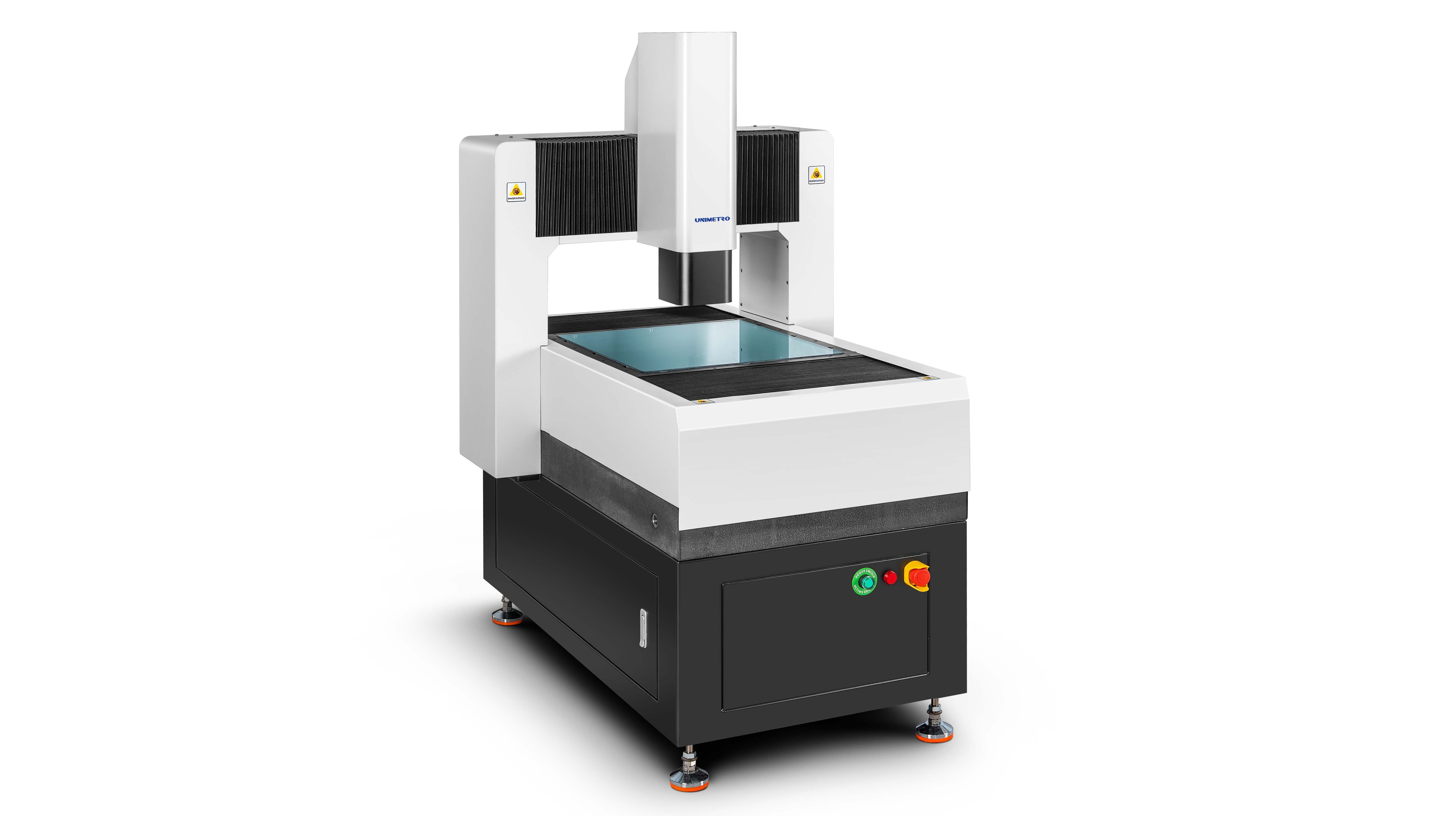

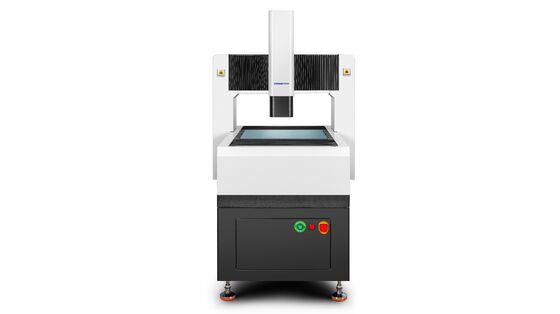

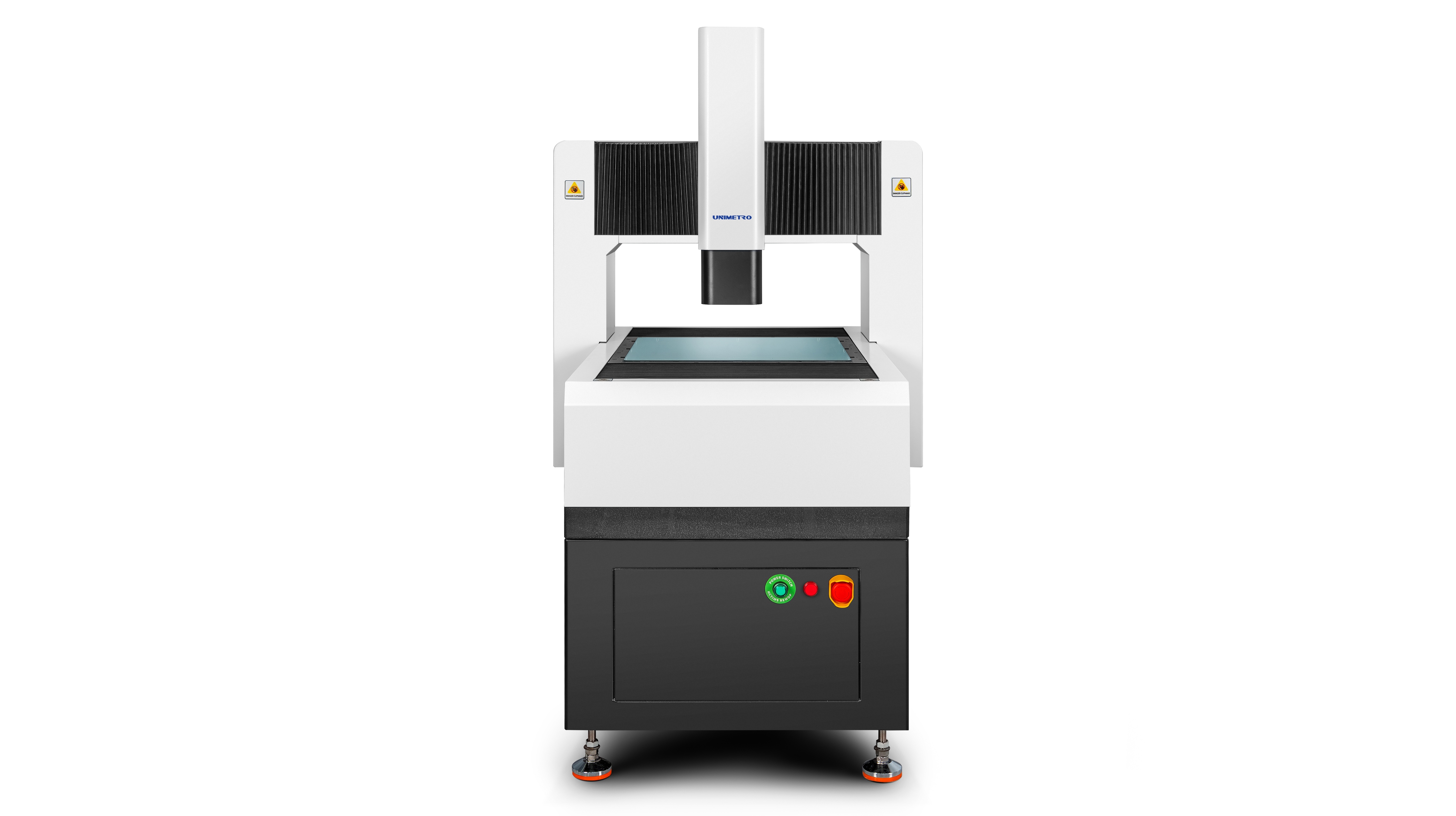

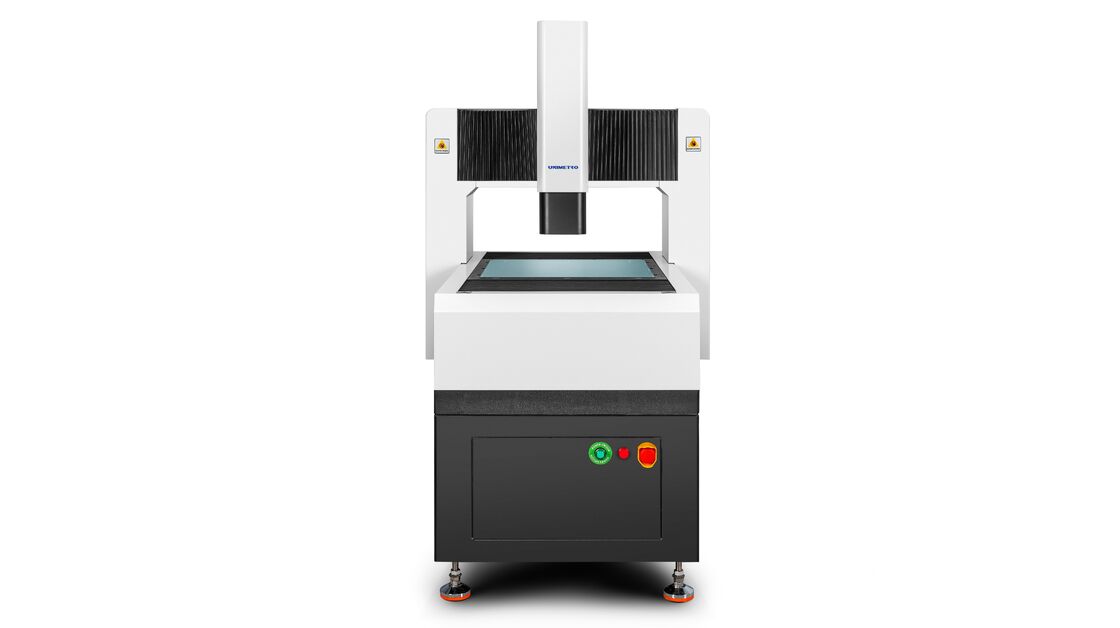

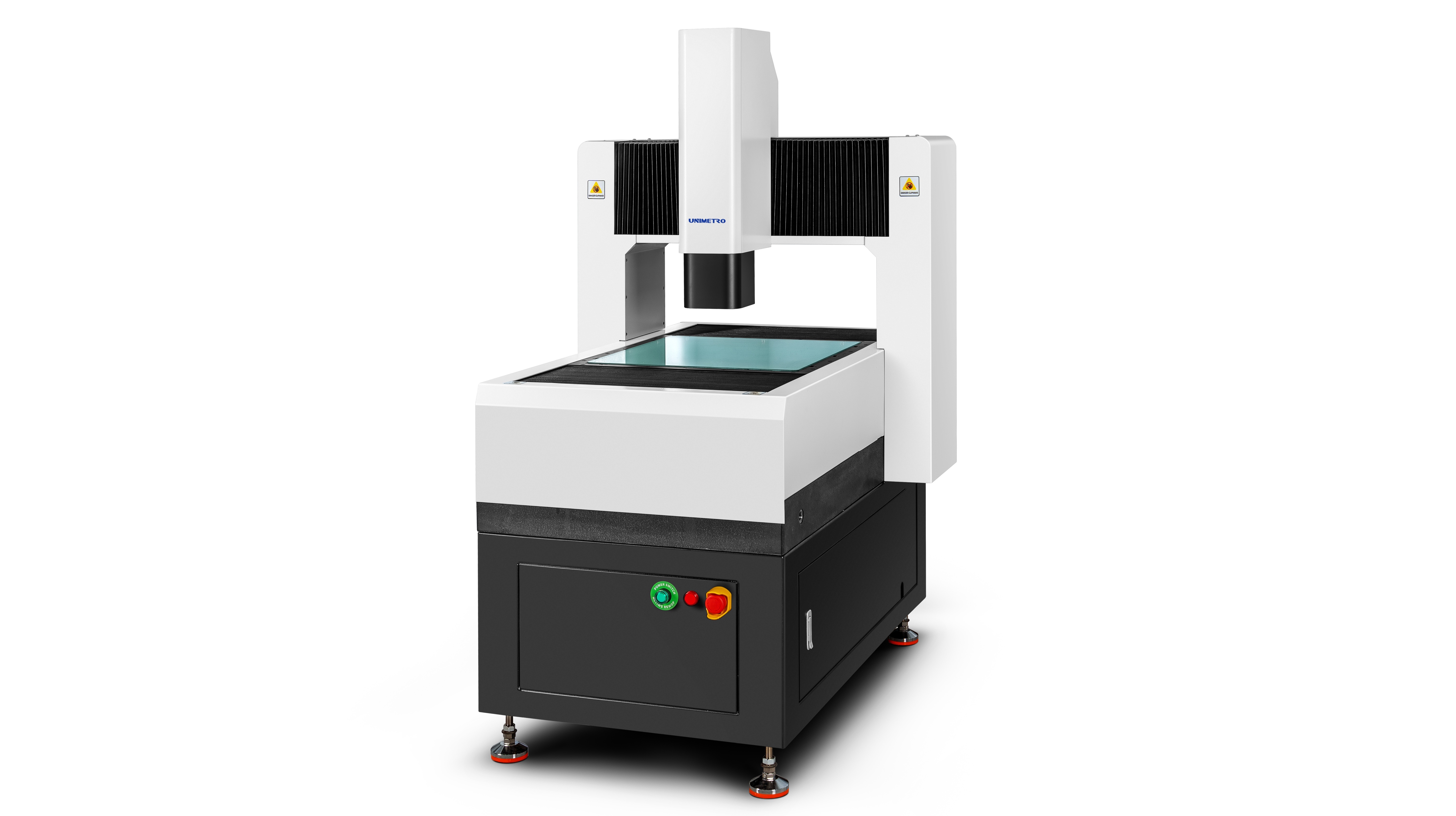

HP442 - Fully Automatic Image Measuring Instrument (Fixed Gantry Type)

HP: High-Precision (High Precision). The main features of the fixed gantry machine are high precision and full automation. "HP" in this context refers to the gantry machine as a "micron-level non-contact automatic optical precision inspection instrument". It helps to enhance the overall production accuracy and productivity for customers.

Technical Specifications

Model	HP 442	HP662	HP872
Dimensions (mm) (X × Y × Z)	920×1200×1600	1120×1400×1600	1320×1600×1600
Measuring range (mm) (X × Y × Z)	400×400×200	600×600×200	800×700×200
Accuracy (μm)	1.6 +L/200	1.6 +L/200	1.6 +L/200
Repeatability (μm)	1.5	1.5	1.5
Weight (kg)	560	860	1600

Additional Specifications

Resolution: 0.5μm (0.1μm optional)
Camera: Industrial-grade color CCD camera
Lens: 1x-10x (Variable magnification)
Magnification: 20X - 200X (varies by camera model)
Video Magnification: 18~195X (varies by camera model)
Work Distance: 85mm
Illumination: Programmable surface light, LED bottom parallel light (optional: coaxial light)
Drive System: CNC control, linear motor drive; Joystick, mouse keyboard control
Linear Scale Resolution: 0.1μm

Applications

Key Features

High Rigid Structure Design

Whole closed frame moving bridge structure with fixed measuring workpiece, providing large bearing capacity and excellent motion performance
Finite element analysis technology integrated into mechanical design for high rigidity and precision structure
Grade 000 granite base with high strength, corrosion resistance and excellent stability
Aluminum oxide surface treatment worktable for fast, flexible action control, durability and aesthetics

High Precision Configuration

RENISHAW open grating ruler with 0.5μm resolution for high precision and stability

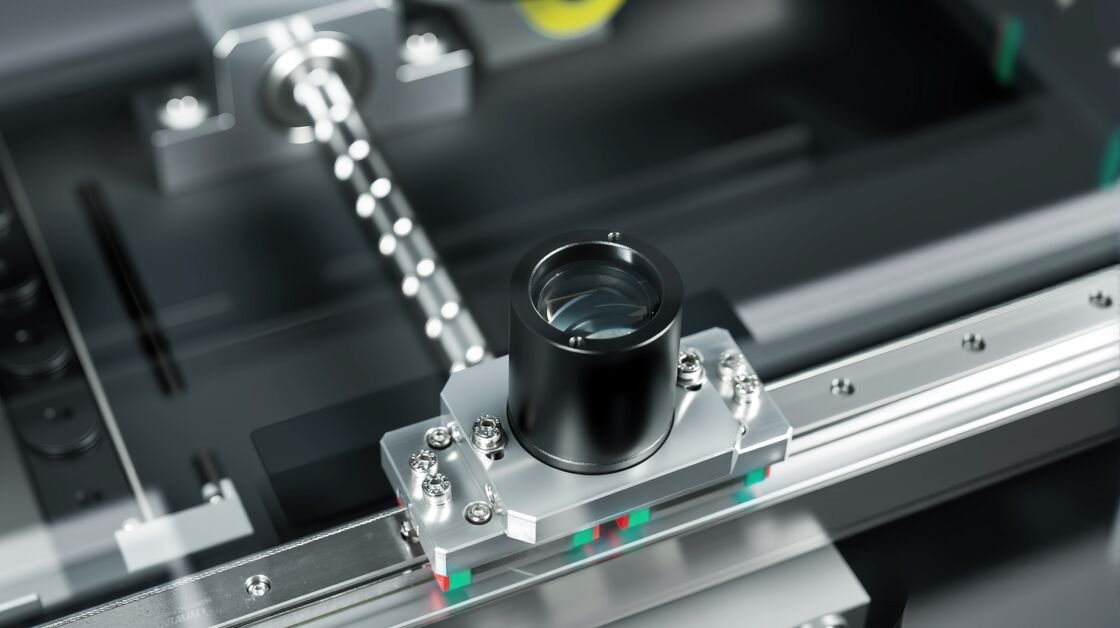

Precision linear guide rail, ball screw of grinder and AC servo motor ensure positioning accuracy stability
2M pixel high-definition color Giga digital camera for clear observation and stable measurement
6.5x high-definition optical lens with accurate automatic zoom and fast pixel calibration

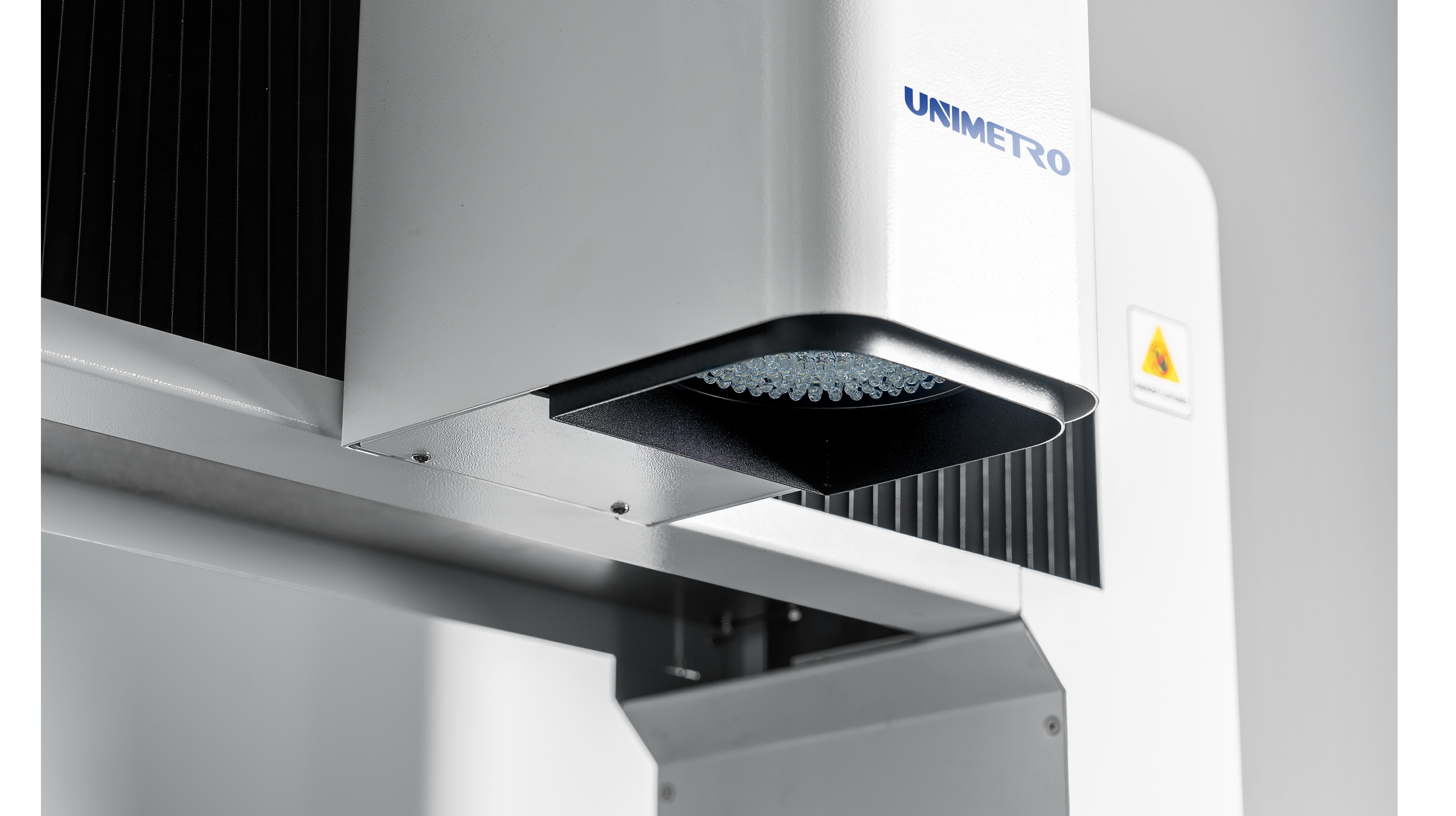

Programmable 5-ring 8-zone LED surface light source with transmission parallel LED contour light source system and intelligent 256 level brightness adjustment
Full axis CNC control with AC full closed loop servo motor drive

Optional Multi-Sensor for 3D Measurement

HE series large gantry type vision measuring instrument can be equipped with a variety of 3D sensors for comprehensive 2D/3D composite measurement. It can also be equipped with non-contact sensors such as probe and laser. Supports RENSHAW full series of probe bracket, enabling users to complete automatic transformation of full-scale measurement on one device, greatly improving productivity.

Company Information

Our Clients & Agents

Frequently Asked Questions

Q1: Are you a factory or trading company?

A1: We are a factory and giving you the quickest reply in 24 hours.

Q2: What's your company mainly in?

A2: We are mainly produce Vision measuring machine, Coordinate measuring machine, CMM & VMM fixtures etc.

Q3: How to Choose the Appropriate Specification?

A3: As long as you tell us variety and size of product to be measured, our professional team would advise you of measuring instrument of suitable specifications.

Q4: Do you accept customized service?

A4: Be sure! We can provide not only typical machines, but also the machines customized to customer's needs.

Q5: What is your warranty period?

A5: Our product warranty period is 1 year. Our product quality is very stable, and we have improved a lot on some breakable parts. You can rest assured of our product quality.
